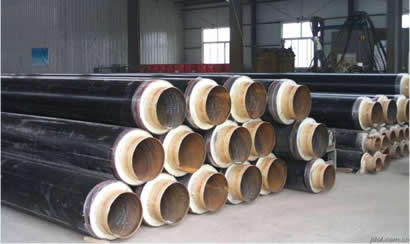

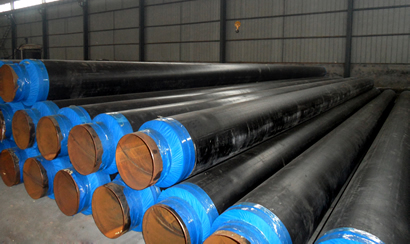

Polyurethane insulating pipe
Polyurethane thermal insulation pipe
introduction
Specification model
The company produces high density polyethylene direct-buried insulation pipes in strict accordance with national standards and the requirements of owners, from raw material procurement, production and processing, storage and transportation, on-site repair and other aspects have perfect quality assurance measures.
0
  Specification model
Outer Diameter of Steel Tube
(φ,mm)
Wall Thickness of Steel Tube
(mm)
External diameter of protective pipe
(phi, mm)
Thickness of exterior protective pipe wall
(mm)
Thickness of Insulation Layer
(mm)
Insulation pipe weight per meter
(kg)
32 3 100 2.2 31.8 3.2
42 3 110 2.5 31.5 4.2
48 3 120 2.5 33.5 4.8
57 3.5 125 3 31 6.3
76 4 140 3 29 9.0
89 4 160 3 32.5 10.6
108 4 180 3 33 12.8
133 4 200 3.2 30.3 15.6
133 4.5 225 3.5 42.5 18.1
159 4.5 225 3.5 29.5 21
159 4.5 250 3.9 41.6 22
219 6 315 4.9 43.1 38
273 6 365 5.6 40.4 49
325 7 420 7 40.5 67
377 7 500 7.8 53.7 81
377 8 500 7.8 53.7 90
426 7 525 8 41.5 90
426 8 550 8.8 53.2 103
478 7 580 8.8 42.2 102
478 8 600 8.8 52.2 116
529 7 630 9.8 40.7 115
529 8 655 9.8 53.2 130
630 8 760 11.1 53.9 158
630 9 760 11.5 53.5 173
720 8 850 12 53 182
720 9 850 12 53 199
820 9 960 13 57 230
820 10 960 14 56 253
920 10 1055 14 53.5 283
920 12 1055 14 53.5 328
1020 10 1155 14 53.5 314
1020 12 1155 14 53.5 363
1120 12 1256 14 54 398
1220 12 1370 16 59 444
1220 12 1380 16 64 447
1220 14 1370 16 59 503
1220 14 1380 16 64 506
1420 14 1580 16 64 588
1420 14 1600 18 72 602
1420 16 1580 16 64 656
1420 16 1600 18 72 670
1620 14 1780 16 64 670
1620 16 1800 18 72 764

●Customized production according to user's requirements; optional anti-leakage early warning system, automatic detection of pipeline leakage fault, automatic alarm, high safety and stability.

●The design and calculation of product specifications should consider specific application conditions, involving more parameters, please contact the company.
