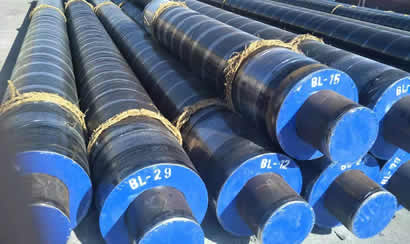

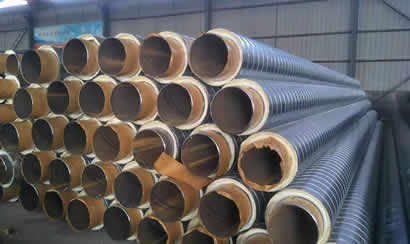

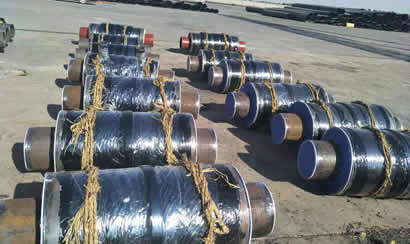

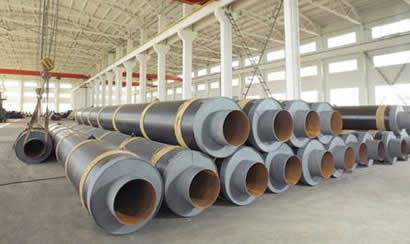

Steel-jacketed Steam Insulation Pipe
Steel casing steel steam pipe
introduction
About
parameter
specifications
This product is mainly used for heating and steam transportation. The pipeline is laid in the underground soil environment, which does not affect the passing vehicles on the road and the surrounding vegetation. It is the preferred pipeline for urban heating construction. It has many advantages such as reliable structure, convenient construction, good heat preservation effect, small environmental impact, long service life and so on. It is widely used. In municipal heating, industrial equipment, papermaking, textile, petrochemical and other industries.
0
  About
Conveying medium Superheated steam, saturated steam, heat conducting oil, etc.
Design pressure When P is less than 2.5Mpa (P > 2.5MPa, our company can customize production separately).
Design temperature If T is less than 350 C (T > 350 C), we can make it separately.
Executive standard CJ/T200-2004, CJ/T246-2007, CJ28-2004
service life More than 30 years
  parameter

1) work steel pipe
Type of steel pipe (optional): seamless fluid pipe and submerged arc welded spiral steel pipe.
2) insulation layer
Material types (optional): asbestos free microporous calcium silicate, high temperature centrifugal glass wool, aluminum silicate, nano aerogel, rock wool
3) jacket steel tube
Type of steel pipe (optional): submerged arc welded spiral steel pipe and longitudinal welded pipe.
4) external anticorrosion coating
Anticorrosion type (optional): five oil three cloth, polyurea spray, 3PE, epoxy resin, soluble epoxy powder.

   specifications
Specifications
(mm)
External diameter of work steel pipe X wall thickness
(mm)
Outer diameter of external steel pipe X wall thickness
(mm)
Insulation layer thickness
(mm)
Unit weight
(mm)
Delivery length L
(mm)
seamless / Welded pipe Helix tube
57/219 57 x 3.5 219 x 6 Sixty Thirty-six 6400/12400 --
76/273 76 x 4 273 x 6 Sixty-five Forty-seven 6400/12400 --
89/273 89 x 4.5 273 x 6 Seventy Fifty 6400/12400 --
108/325 108 x 4.5 325 x 7 Seventy Sixty-seven 6400/12400 --
133/377 133 x 4.5 377 x 7 Eighty Seventy-nine 6400/12400 --
159/377 159 x 6 377 x 7 Eighty-five Eighty-eight 6400/12400 --
219/478 219 x 6 478 x 7 One hundred One hundred and eighteen 6400/12400 Twelve thousand
273/529 273 x 6 529 x 7 One hundred and five One hundred and thirty 6400/12400 Twelve thousand
325/630 325 x 7 630 x 8 One hundred and twenty-five One hundred and seventy-eight 6400/12400 Twelve thousand
377/720 377 x 7 720 x 8 One hundred and forty Two hundred and thirty-nine 6400/12400 Twelve thousand
426/820 426 x 7 820 x 9 One hundred and forty Two hundred and seventy-three 6400/12400 Twelve thousand
478/820 478 x 7 820 x 9 One hundred and forty Two hundred and eighty-seven 6400/12400 Twelve thousand
529/920 529 x 7 920 x 9 One hundred and sixty-five Three hundred and fifteen 6400/12400 Twelve thousand
630/1020 630 x 8 1020 x 10 One hundred and sixty-five Three hundred and seventy-two 6400/12400 Twelve thousand
720/1120 720 x 10 1120 x 11 One hundred and seventy Five hundred and thirty-three -- Twelve thousand
820/1220 820 x 10 1220 x 12 One hundred and seventy Five hundred and fifty-eight -- Twelve thousand
920/1320 920 x 10 1320 x 14 One hundred and seventy Six hundred and seventy-five -- Twelve thousand
1020/1420 1020 x 10 1420 x 14 One hundred and seventy Seven hundred and thirty-four -- Twelve thousand

Note: the product specification in this table is designed for our company, and the actual product is the actual sample. Therefore, the product can be customized according to the actual needs of customers.
